Coordinated Pipe Design for the energy,
process and manufacturing industries

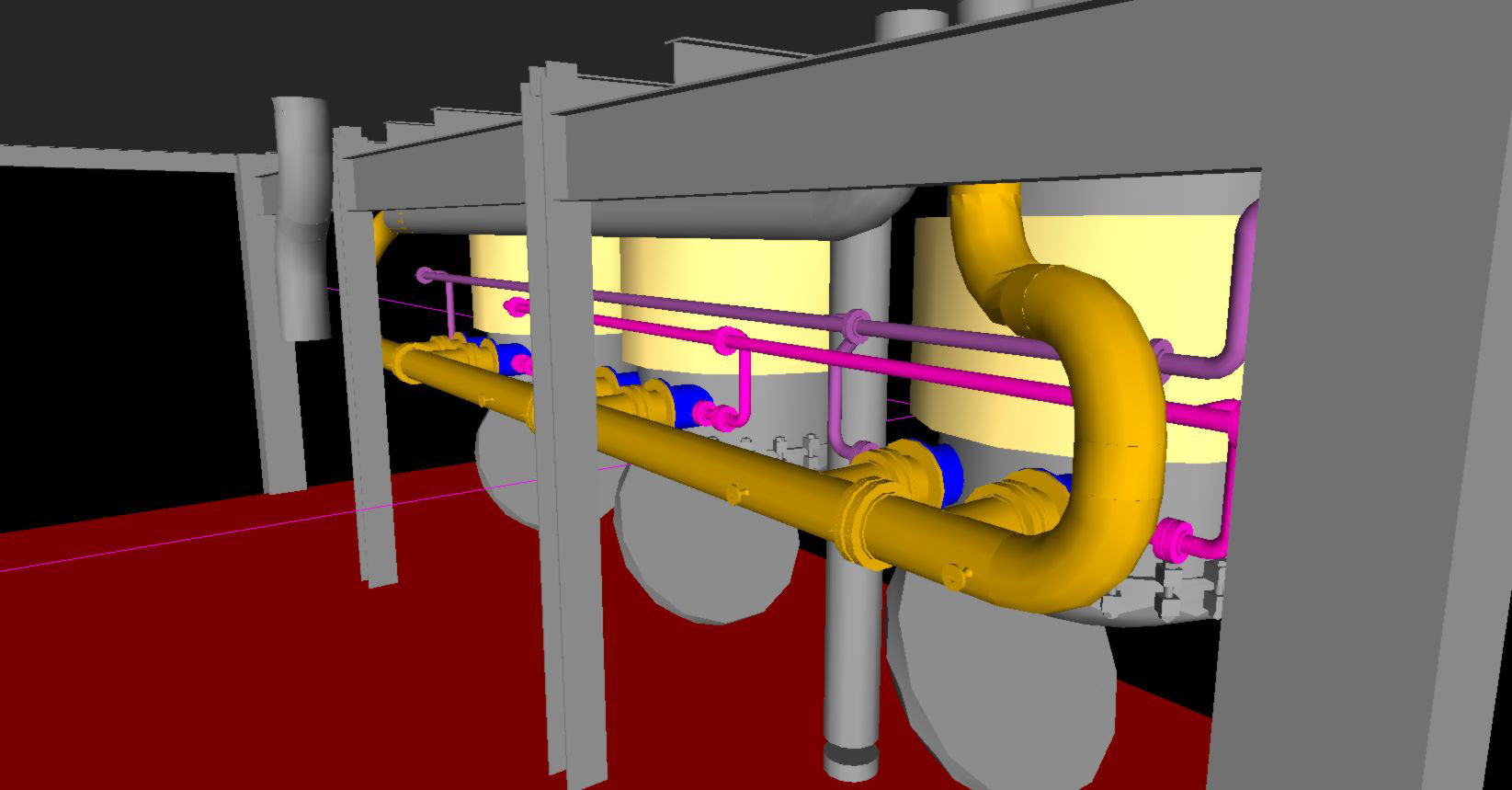

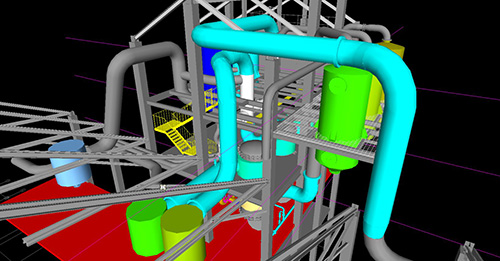

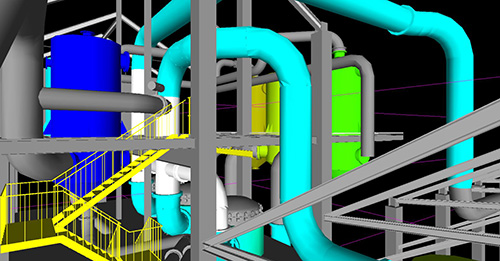

At Pipetech we take a proactive approach to design whereby we first fully understand the client’s requirements and budget prior to commencing the design process. We have an unprecedented history of successful design projects due to the incorporation of 3D pipework modeling and detailed suite surveys.  By using a detailed 3d pipework model we can coordinate the pipework around existing obstructions and plant to ensure that the clashes are eliminated and the most efficient design is possible.  We can then use our 3d model to produce isometric drawings and a bill of materials for precise fabrication.

We provide the following data to support all our designs

Bill of materialIsometric drawings
Weld Mapping
2D layout from 3D model
Clash Detection
View with Navisworks

We use the following design packages;

Cadwork Professional 2013 and AutoCAD 2014
Stress Analysis - Caesar II
